Features:

1、Integrated design of storage, feeding and bag sorting, simple structure, compact and elegant appearance

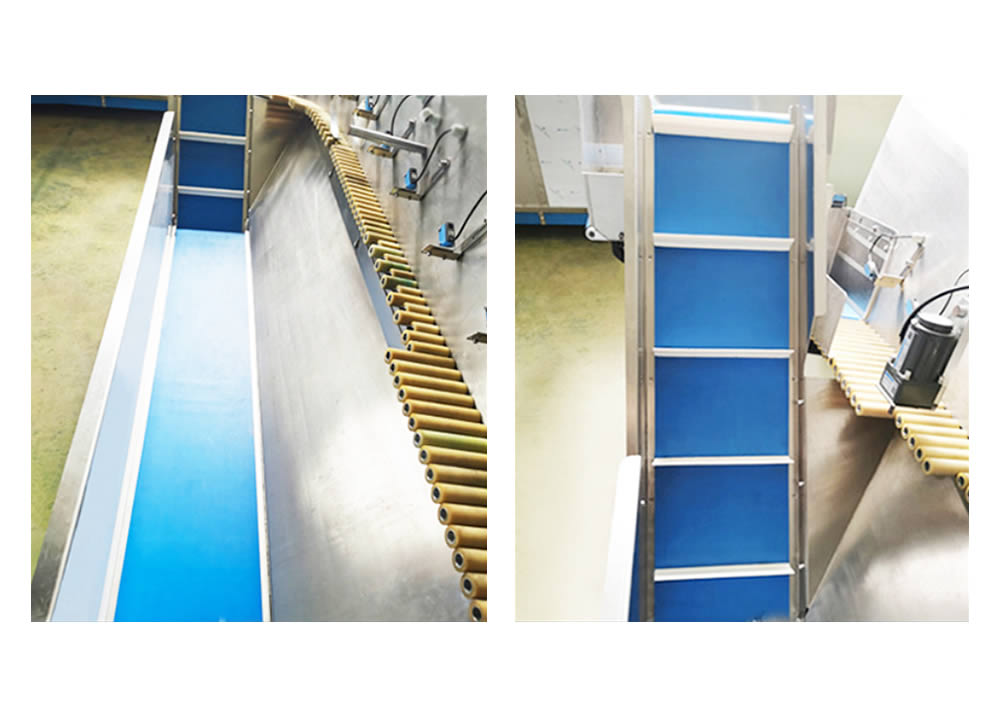

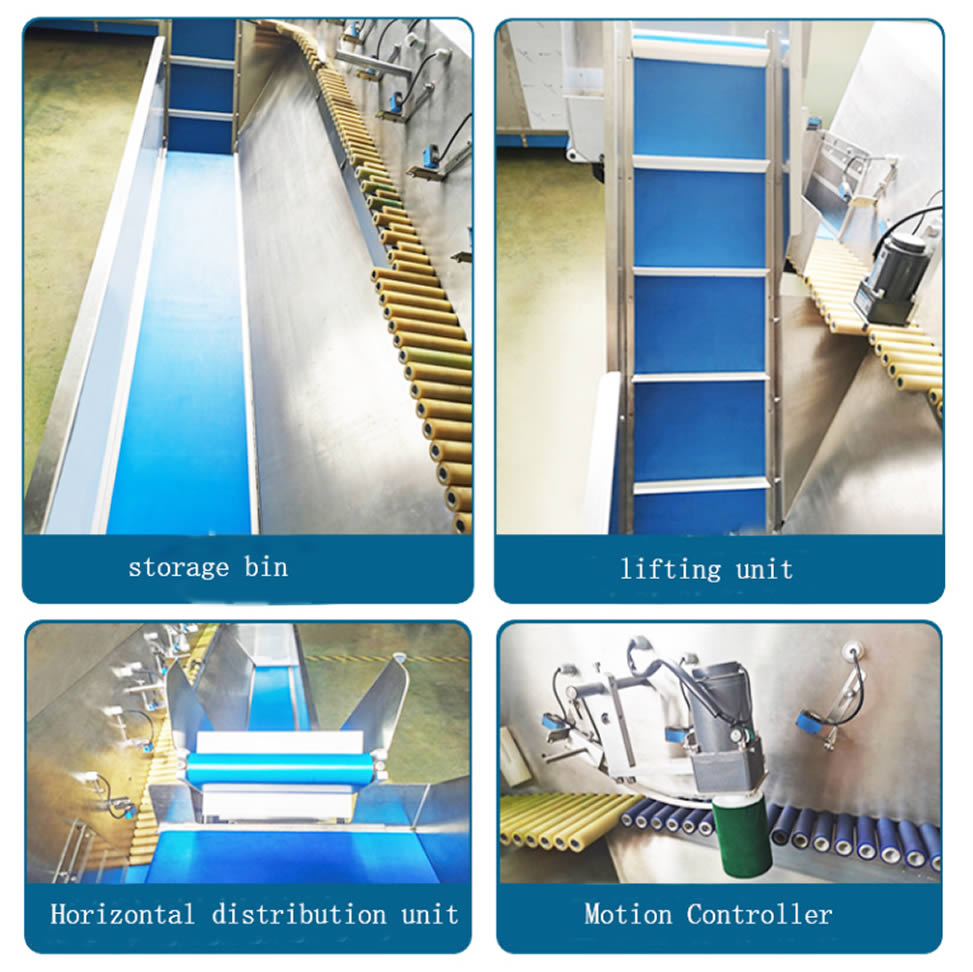

2、Integrated large-capacity storage bin, convenient for feeding

3、The bottom of the silo is equipped with a conveyor belt, which is convenient for feeding and avoids material residue.

4、The material distribution conveying roller is driven by multiple sets of servo motors, and the speed is carried out through the feedback signal of the photoelectric sensor.

Degree adjustment, precise control, fast bag sorting.

5、Fully automatic arrangement is realized through servo control mode, and multi-servo system realizes orderly order of materials

Stacking, the process is stable and controllable;

6、The whole process realizes decentralization, sequence, and stacking, and the process does not require manual intervention;

7、Combination of multiple methods, the number of bag unscramblers can be increased or decreased according to the speed, and the single machine can also be used

complete the finishing process;

8、Multi-servo system control, high speed and precision, convenient operation and high degree of automation;

9、The body of the equipment is made of 304 stainless steel, and the plexiglass cover conforms to the GMP standard.

process safety and hygiene;

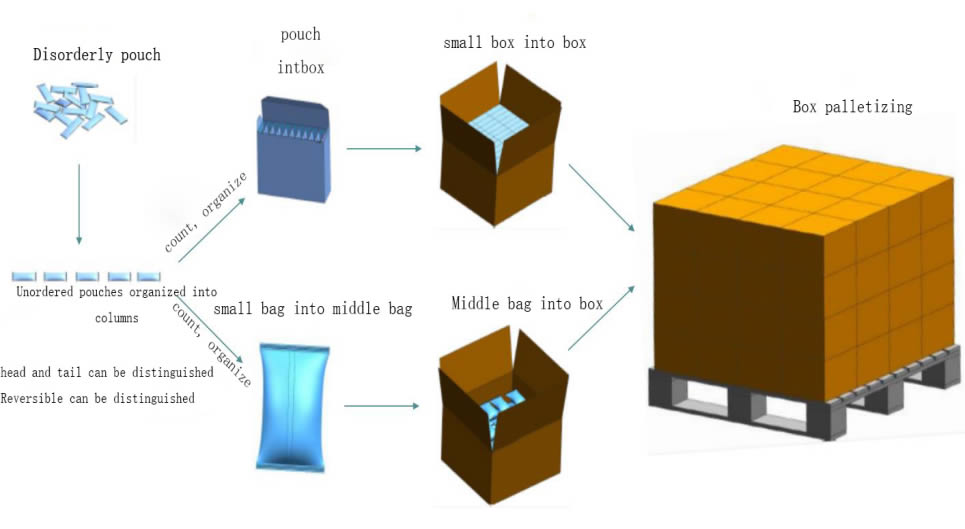

Small bag packaging flow chart
